Features

• Ruggedised Field Proven performance and compact Size.
• PT-100-RTD inputs.
• Extremely Low priced.
• Linearized current O/P and Noice free Operation.
• Senser Cable Compensation.
• Head/ Panel Mounting.
• Loop Powered opertion.(10 to 30V DC)
• 5 years Replacement Gurantee.

Application Area

• Process Plants
• Refrigeration
• Air Conditioners
• Power Plants

General Description

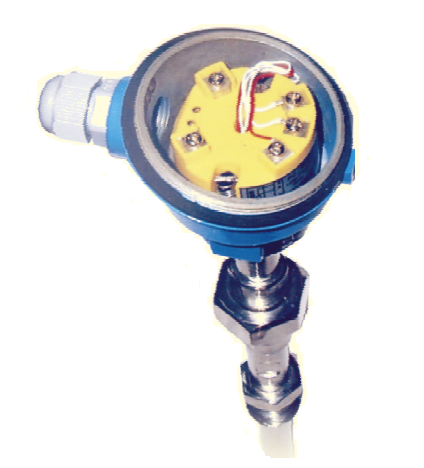

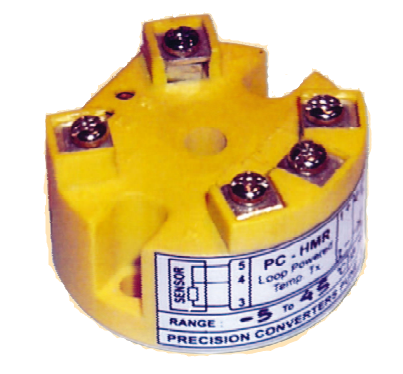

Model PC HMR is head mounting loop powered temperature transmitter used in industrial temperature measurement applications. It accepts three wire PT-100 RTD as input and provides 4-20mA lineared current output proportional to the temprature. Measurment Range is fixed and factory calibrated against requirment.

Electronic card for single processing is housed in plastic(Nylon)enclosed sutaible to the mounted in any standard RTD head. Quality electronic components are used considering industrial ambient conditions and trouble free reliable operation

As PC-HMR provided with cable length compensation(Sensor wire resistance compensation) it can be used as panel mounting(Away from RTD sensor)unit.
