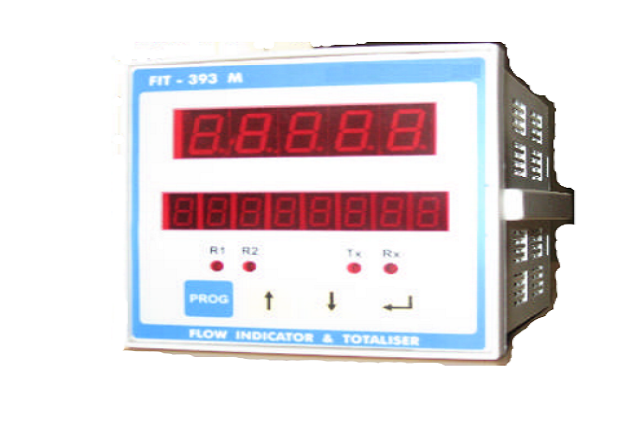

FIT 393M (96*96) Model
Features
- Ruggedised,State-of-the-art Micro-controller based system.
- Dual functionality flow rate indication/ 8 digit flow totalizing and Batch Counter mode.
- User configurable flow rate range Field set table flow totalizing rate.
- Relay outputs - Optional for Batch or Setpoint operation.
- 24VDC 100mA Excitation Supply for external use.
- Retransmission output by short link-Optional.
- Serial communication port with MODBUS protocol-Optional.
Application
Flow Indicator Totaliser model is a panel mounted instrument with multi-functionality viz.Flow Rate indication,Flow Totalising,batch counter & alarm for instantaneous flow.It accepts mA signal proportional to flow rate from flow transmitter.Flow Transmitter can be DPT with or if ice assembly, Rotameter,Magnetic Flow meter etc.with output of4-20mA
FIT393 M displays instantaneous flow rate on5 digit LED Display. Flow Rate and Totaliser range can be configured as required even at site.Totaliser is a 8 digit LED Display.Totaliser can be reset manually or . The unit incorporates two relays, from which one can be used for alarm for instantaneous flow& one for batch counter or both for alarm. One a chset point one contact output is given, which can be used for control or hooter applications Power Supply for external transmitter(24 V DC @100 mA)is a standard feature.It eliminates need of separate power supply to power the transmitter.For batch counting,batch count can beset.When flow total equals preset count,system gives a contact output. It can be used for control operations like dosing, stoppage etc.

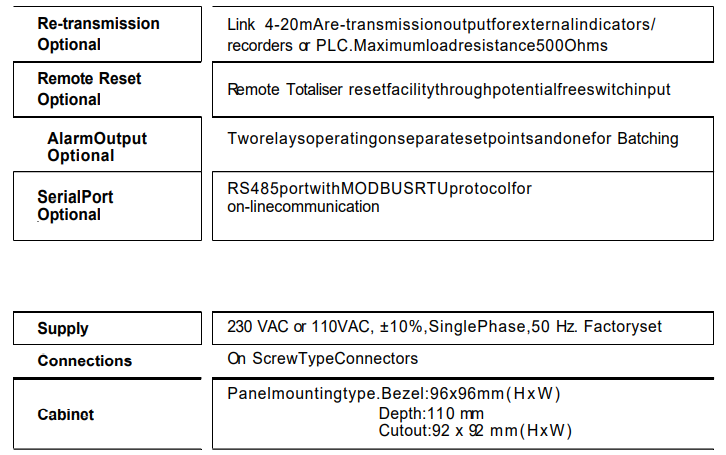

Optional
- Relay output for 2 set points or Batching relay
- FIT393 M also provides linear 4-20mA retransmission signal for other panel mounted instruments like recorders,controllers etc
- Serial connectivity on RS485 port with MODBUS RTU protocol
