SIGNAL ISOLATOR / CONVERTER
PC-ISO supports both two wire and four wire configurations at input and output.
Features
- Ruggedised field proven performance with complete design flexibility.
- 1 KV peak isolation between I/P and O/P as well as between outputs.
- Single/multichannel output with various powering options.
- Multiple functions - signal conversion, signal isolation, signal splitting, signal scaling, signal boosting.
- Two wire four wire ( current sink source ) options at I/P and O/P.
- Noiseless operation with response time in milliseconds.
- Low cost, Compact size, Ex- stock delivery.
- Multichannel rack to save space.
Signal isolator PC-ISO is a highly reliable and accurate input - output isolator with fully flexible design approach. PC-ISO can convert, split, isolate, boosts and step down process signals from field instruments to interface with DCS, PLC, recorder, indicators or PC based SCADA systems.
Input signal ranges from AC/DC voltage, DC/AC current to transducers like RTD, TC, potentiometer etc. High conversion accuracy with fast noise free response is a special feature of PC-ISO. Ruggedised electronics of PC-ISO provides galvanic and optical isolation of 1KV which is far more higher than conventional isolators. The purpose of galvanic isolation is to tackle ground loop problems, to avoid common mode voltage, to protect measuring and controlling instrument from high potential.
PC-ISO supports both two wire and four wire configurations at input and output. Two wire input directly drives two wire transmitters thus eliminating separate transmitter supply. Various models for various applications along with custombuilt options are available in PC-ISO. Low cost, compact size and ex-stock delivery make this model unique.

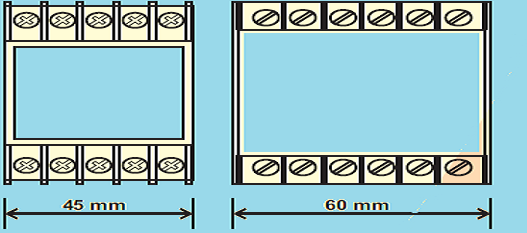

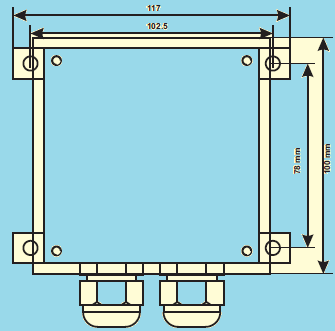

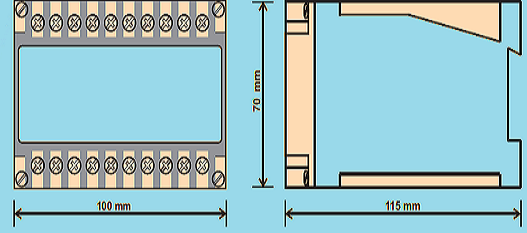

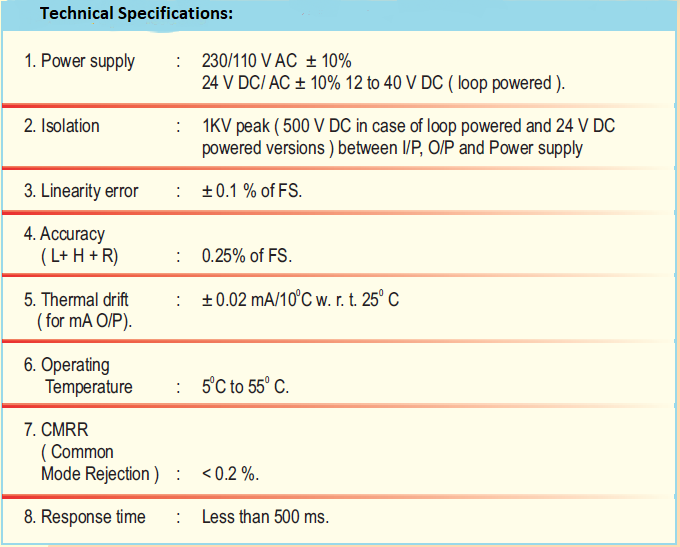

Ordering Information
| Type/mode | Input | Output | Features | Power | Mounting |
|---|---|---|---|---|---|
| PC-ISO | 4-20 mA / 0 - 20 mA | 4-20 mA / 0 - 20 mA | Isolated Signal Repeater Single channel | 230/110 VAC 24 V DC / AC |
DIN RAIL EN 50022 35 x 3.5 mm |
| PC - ISO-C | 4 - 20 mA 0 - 20 mA AC / DC voltage AC / DC current, RTD, TC, Resistance |
0-20 mA 4 - 20 mA 0 - 10 V |
Isolated Signal Converter Single channel |
230 / 110 V AC 24 V DC / AC. |
DIN RAIL Back of Panel |
| PC-ISO-M | 0 - 20 mA 4 - 20 mA | 0 - 20 mA 4 - 20 mA Two O/P or Four O/P |
Signal Multiplication with Isolation |
230 / 110 V AC 24 V DC / AC |
DIN RAIL / Back of Panel |
| PC-ISO-CM | 4 - 20 mA 0 - 20 mA 0 - 10V DC |
4 - 20 mA 20 mA 0 - 20 mA 0 - 10V Two O/P or Four O/P |
Isolated Signal Splitter with Conversion |
230 / 110 V AC 24 V DC / AC |
DIN RAIL / Back of Panel |
| PC-ISO-2W | 4 - 20 mA 0 - 20 mA TC, RTD |
4 - 20 mA 0 - 20 mA 0 - 10 |
Two Wire Loop Powered Isolator |
Loop Powered 12 - 40 V DC |
DIN RAIL / IP65 mounting |
| PC-ISO-LP | 4 - 20 mA | 4 - 20 mA | No Need of Supply | From Input Loop | DIN RAIL |
| PC-ISO-MCH | 0 - 20 mA 0 - 20 mA 0 - 10 V |
4 - 20 mA 4 - 40 mA 0 - 10 V |
Multichannel rack | 230 V AC 24 V AC / DC |
Back of Panel |
